Construction photos of the second row seating riser for my home theater. Approximately 10' wide, 5' deep, and 20" high.
Date: 2007.07.29
Size: 32 items
Views: 24950
Bottom Platform Interior
An interior view of the bottom platform.
Date: 2004.12.07
Views: 2641
An interior view of the bottom platform. The frame is complete and part of the plywood has been attached. The frame is constructed of 2x6's and the plywood is 1/2". All wood is screwed together for easier deconstruction later.
2004.12.07
The bottom platform in position on the floor. The hardwood floor is protected from the riser by roofing felt. The interior spaces will be filled with sand to absorb sound.
2004.12.07
The bottom platform is complete and ready for the top platform.
Date: 2004.12.07
Views: 2288
The bottom platform is complete and ready for the top platform. The platform is covered with 1/2" plywood and roofing felt is being laid down. The roofing felt will be screwed on. About 420 pounds of sand was placed inside.
2004.12.07
A view of the top platform's bottom, ready for placement.
Date: 2004.12.08
Views: 3824
A view of the top platform's bottom, ready for placement. The bottom platform has been covered with roofing felt and the initial frame of the top platform will be lowered onto it.
2004.12.08
A view of the top platform's initial frame. The outer frame of 2x6's is complete, with two support studs. The 1/2" plywood of the base is attached to the outer frame and studs.
2004.12.08
The top platform interior with all support studs in place.
Date: 2004.12.08
Views: 3002
The top platform interior with all support studs in place. The frame only contained a few support studs when it was moved into place over the bottom platform, so it would be easier to move. The additional studs were added after it was in place. The studs are approximately 16" apart, except for the one at the end which is set to support the edge of two plywood pieces where they come together.
2004.12.08
A lengthwise view of the top platform interior. All support studs have been added approximately 16" apart, except for the one at the end which is set to support the edge of two plywood pieces where they come together. The top platform cover will be screwed on after the interior has been filled with sand.
2004.12.08
The right half of the top platform filled with sand.
Date: 2004.12.08
Views: 2689
The right half of the top platform filled with sand. The top platform has been filled with 420 pounds of general purpose sand. The sand will add mass to the platform to reduce the risk of movement, and also absorb sound energy so there is no echo inside due to people walking or the audio.
2004.12.08
The left half of the top platform filled with sand.
Date: 2004.12.08
Views: 2932
The left half of the top platform filled with sand. The top platform has been filled with 420 pounds of general purpose sand. The sand will add mass to the platform to reduce the risk of movement, and also absorb sound energy so there is no echo inside due to people walking or the audio.
2004.12.08
The completed platform in place. The top platform has had its top plywood screwed on and the 1/2" rounded lip attached. It is ready for carpeting.
2004.12.08
A close-up of the 1/2" rounded lip. The top platform has a 1/2" rounded lip running along the entire frame. This will blunt any feet or legs that bump into it, and overhang the rope lighting.
2004.12.08
A wide view of the 1/2" rounded lip. The top platform has a 1/2" rounded lip running along the entire frame. This will blunt any feet or legs that bump into it, and overhang the rope lighting.
2004.12.08
The carpet padding is attached, carpet is ready to go on.
Date: 2004.12.08
Views: 3501
The carpet padding is attached, carpet is ready to go on. The padding was stapled onto the platform, and the carpet is what was in the dining room before we put down hardwood flooring.
2004.12.08

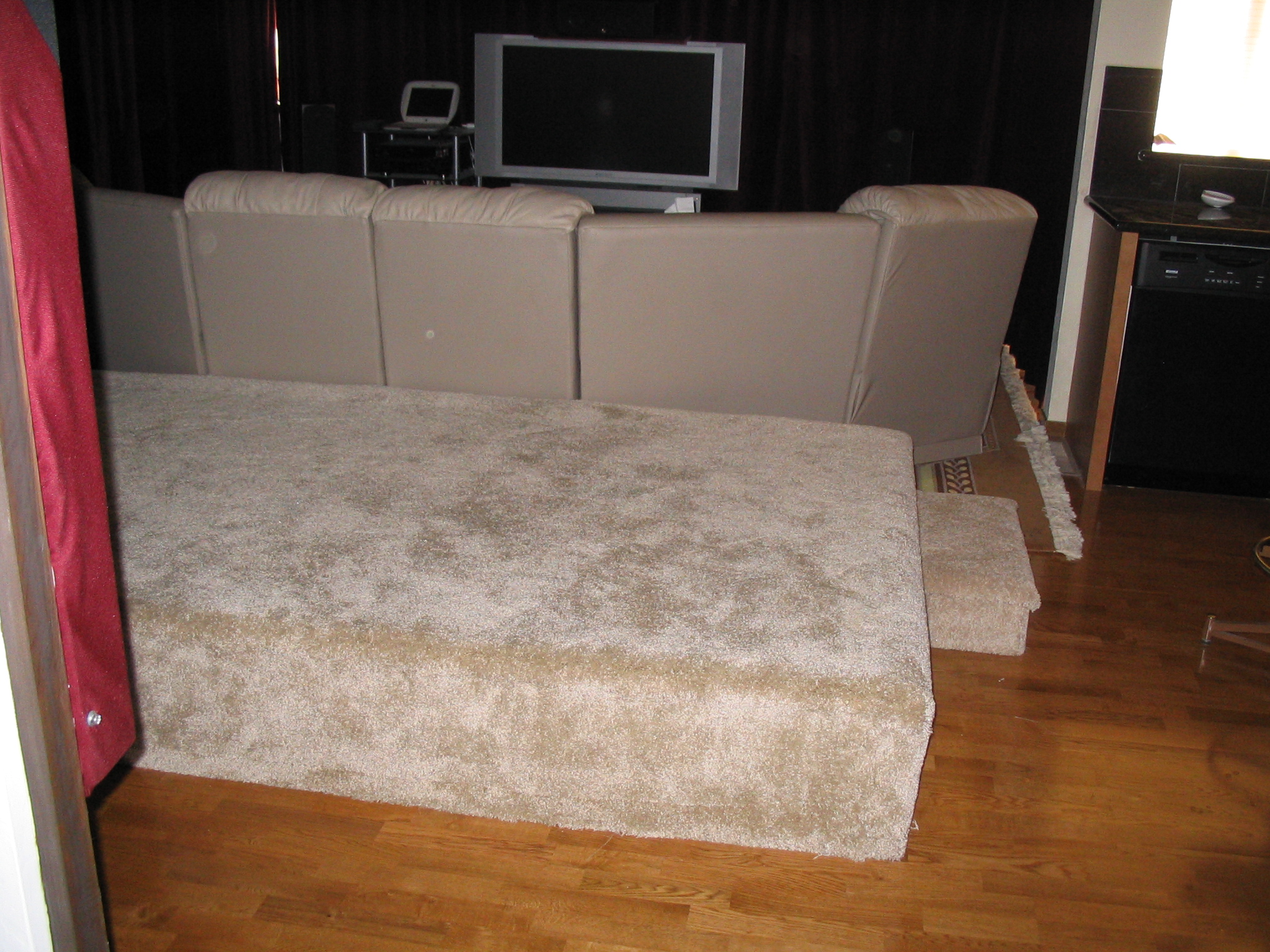

The platform after it has been fully carpeted. Long staples were used to attach the carpet at the base of the platform and beneath the rounded lip.
2004.12.08

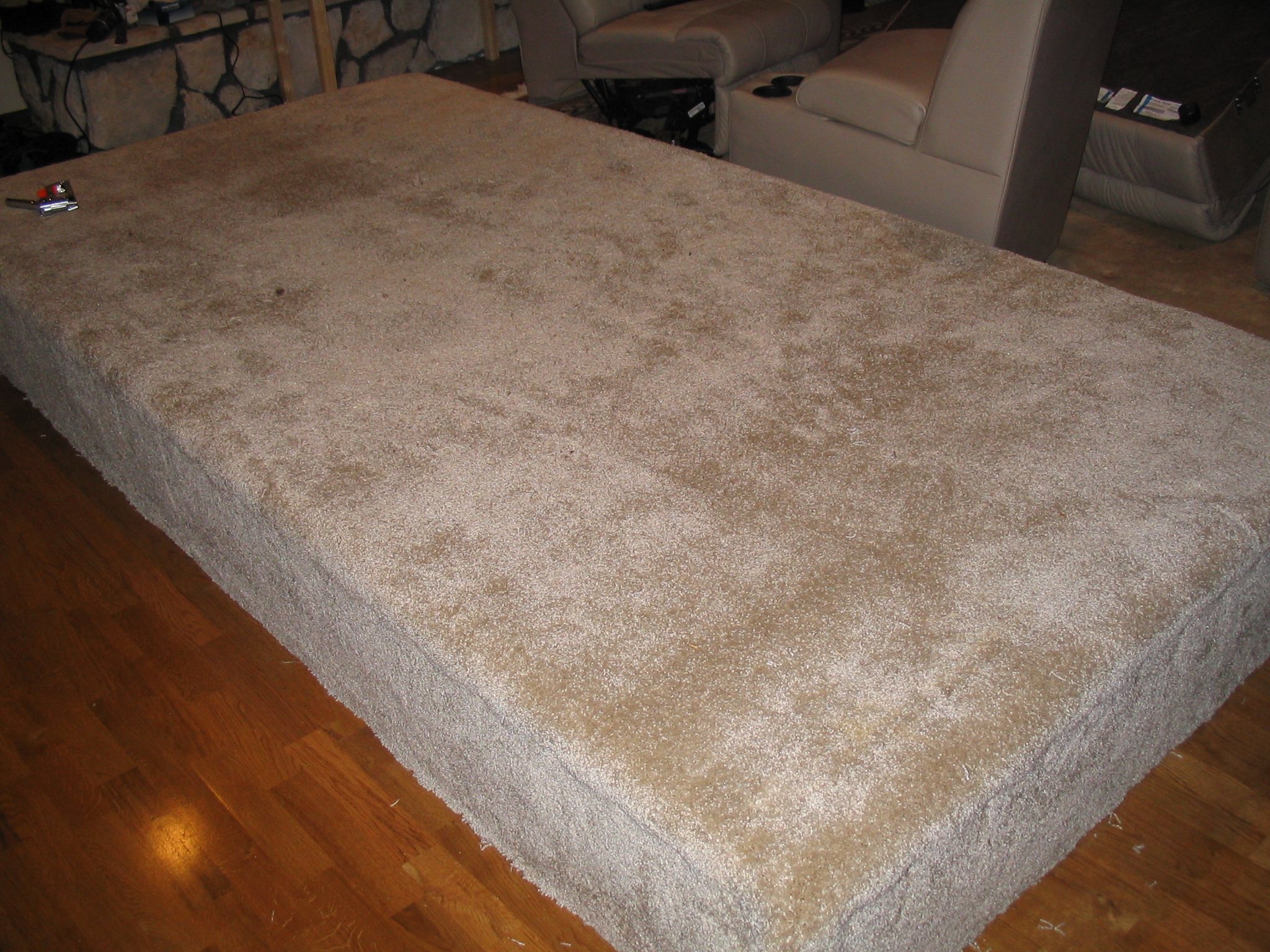

A perspective view of the fully carpeted riser. Long staples were used to attach the carpet at the base of the platform and beneath the rounded lip.
2004.12.08
Interior view of one of the steps. Each step is half the height of the riser and constructed in the same manner. The cavity will be filled with sand.
2004.12.08
Both steps filled with general-purpose sand. Each step has about 30 pounds of sand in it. This will help keep the steps from moving around when touched, or from resonating to the audio.
2004.12.08
The compelted step frame. The 1/2" plywood has been screwed to the top, and the 1/2" semi-circle lip has been nailed to protect shins and feet.
2004.12.09
The completed riser with rope lighting attached. The rope lighting was purchased from Home Depot in a 24' length (not Christmas rope lighting) and attached with clips and #4 x 3/4" screws. It is routed under the front row carpet with a wire protector strip, and plugged into a portable dimmer set at half value.
2004.12.23
