Panel Trap
Construction photos of the panel trap I built for the back wall of my home theater.
Date: 2007.07.29
Size: 19 items
Views: 14615
Frame + Fiberglass (Front View)
Item ActionsFrame + Fiberglass (Front View)
A front view of the frame and single piece of fiberglass.
Date: 2004.04.11
Views: 2813
A front view of the frame and single piece of fiberglass. 2004.04.11
View Slideshow
Corner Support
Item ActionsCorner Support
A close-up view of the upper-left corner support.
Date: 2004.04.11
Views: 2913
A close-up view of the upper-left corner support. It has been attached to the wall at the study by a 3" fastening screw. 2004.04.11
View Slideshow
Center Supports
Item ActionsCenter Supports
A close-up view of two of the center supports.
Date: 2004.04.11
Views: 2378
A close-up view of two of the center supports. These were attached to the drywall with 1/4" x 3" toggle bolts. 2004.04.11
View Slideshow
Frame + Fiberglass (Side View)
Item ActionsFrame + Fiberglass (Side View)
A side view of the frame and single piece of fiberglass.
Date: 2004.04.11
Views: 2514
A side view of the frame and single piece of fiberglass. There is a 1" gap between the fiberglass and the wall, created by the supports. There will also be a 1/2" gap between the fiberglass and the front of the frame (which will be later constructed of 1/4" plywood). 2004.04.11
View Slideshow
Frame & One Panel
Item ActionsFrame & One Panel
A side view of the frame and single attached panel.
Date: 2004.04.11
Views: 2835
A side view of the frame and single attached panel. 2004.04.11
View Slideshow
Frame & Three Panels (Wide View)
Item ActionsFrame & Three Panels (Wide View)
A wide view of the frame.
Date: 2004.04.11
Views: 2365
A wide view of the frame. All three pieces of 2" 2x4 rigid fiberglass have been attached to the wall supports. The fiberglass was attached while the frame was hanging onto the supports, to ensure fit. 2004.04.11
View Slideshow
Fiberglass w/o Frame (Side View)
Item ActionsFiberglass w/o Frame (Side View)
A side view of the three rigid fiberglass sheets, attached to the supports.
Date: 2004.04.11
Views: 2519
A side view of the three rigid fiberglass sheets, attached to the supports. There is a small air gap behind the fiberglass. This gap is an important part of the trap and helps capture lower frequencies. 2004.04.11
View Slideshow
Three Fiberglass Sheets
Item ActionsThree Fiberglass Sheets
A wide view of the three 2" 2x4 rigid fiberglass sheets.
Date: 2004.04.11
Views: 2123
A wide view of the three 2" 2x4 rigid fiberglass sheets. The sheets are attached to the supports, and the frame has been removed. 2004.04.11
View Slideshow
Frame + Plywood (Outer)
Item ActionsFrame + Plywood (Outer)
Two sheets of 1/4" plywood has been nailed onto the front of the frame.
Date: 2004.04.11
Views: 4375
Two sheets of 1/4" plywood has been nailed onto the front of the frame. Finishing nails were used approximately every three inches. Caulk has been applied to the connection points to seal any gaps that might allow air to leak through. 2004.04.11
View Slideshow
Completed Frame (Exterior)
Item ActionsCompleted Frame (Exterior)
An exterior view of the completed frame.
Date: 2004.04.11
Views: 2277
An exterior view of the completed frame. The frame consists of two pieces of 1/4" plywood nailed to a frame of 2x4 fir. Everything has been caulked to prevent any air leakage. 2004.04.11
View Slideshow
Caulking Close-Up (Plywood Gap)
Item ActionsCaulking Close-Up (Plywood Gap)
A close view of the caulk that was applied to the frame gap.
Date: 2004.04.11
Views: 2267
A close view of the caulk that was applied to the frame gap. The gap is located between the two sheets of 1/4" plywood and also between the plywood and the frame. After drying, the caulk will be cut down. 2004.04.11
View Slideshow
Caulking Close-Up (Corner Gap)
Item ActionsCaulking Close-Up (Corner Gap)
A close view of the caulk that was applied to the corner.
Date: 2004.04.11
Views: 2855
A close view of the caulk that was applied to the corner. The two pieces of 2x4 fir used to construct the frame meet at right angles. The frame was screwed together using wood screws. The caulk will be cut down after drying. 2004.04.11
View Slideshow
Completed Frame (Interior)
Item ActionsCompleted Frame (Interior)
An interior view of the completed frame.
Date: 2004.04.11
Views: 2903
An interior view of the completed frame. The frame consists of two pieces of 1/4" plywood nailed to a frame of 2x4 fir. Everything has been caulked to prevent any air leakage. 2004.04.11
View Slideshow
Interior Caulk (Corner View)
Item ActionsInterior Caulk (Corner View)

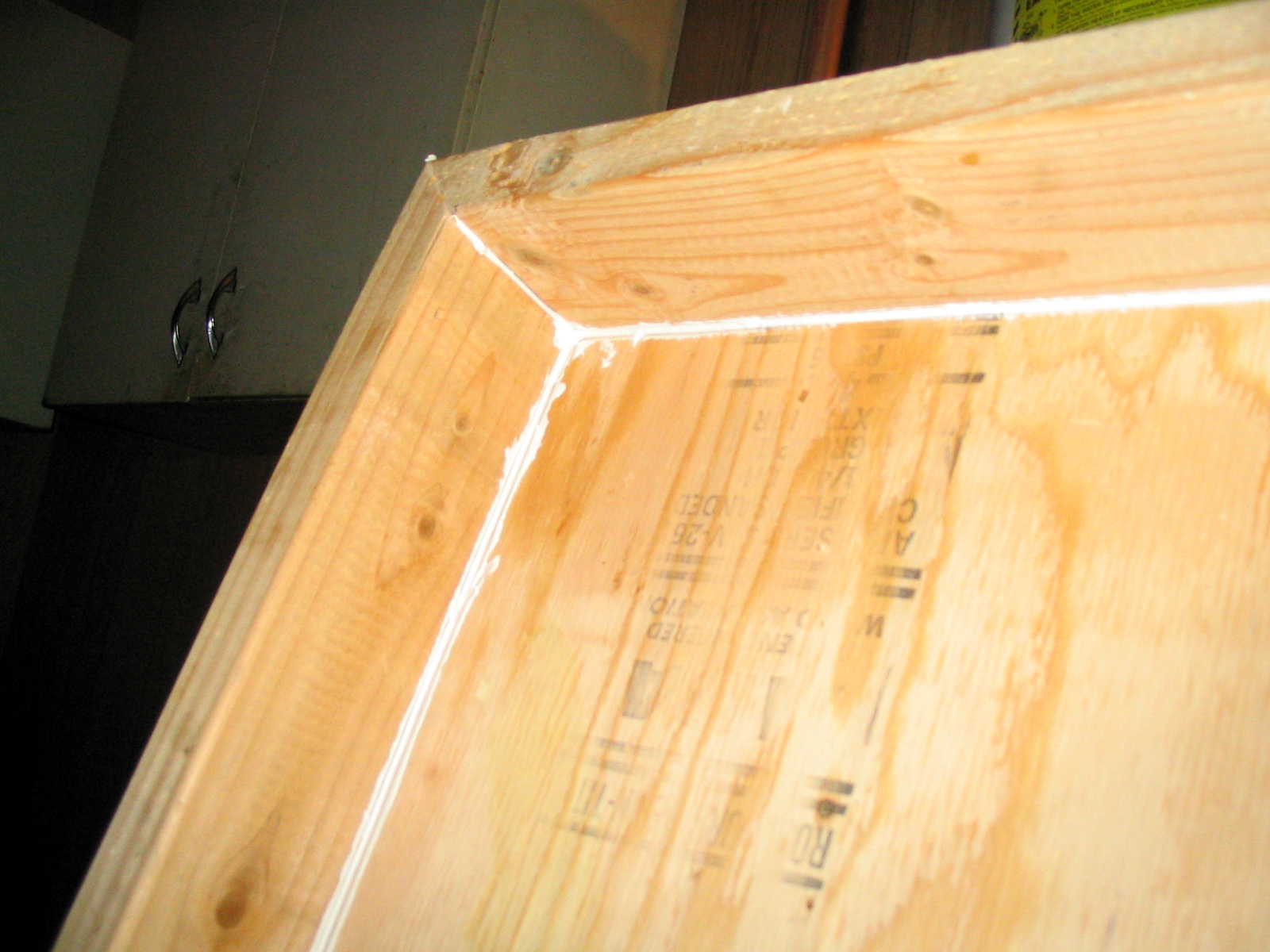

A close view of the interior frame corner after caulk was applied.
Date: 2004.04.11
Views: 2729
A close view of the interior frame corner after caulk was applied. The caulk will be cut down after drying. 2004.04.11
View Slideshow
Finished Panel Trap (Side View)
Item ActionsFinished Panel Trap (Side View)
A side view of the finished panel trap after it has been hung on the wall.
Date: 2004.04.11
Views: 2119
A side view of the finished panel trap after it has been hung on the wall. 2004.04.11
View Slideshow
Finished Panel Trap (Wide View)
Item ActionsFinished Panel Trap (Wide View)
A wide view of the finished panel trap after it has been hung on the wall.
Date: 2004.04.11
Views: 2711
A wide view of the finished panel trap after it has been hung on the wall. 2004.04.11
View Slideshow
Completed Panel Trap (Right Perspective)
Item ActionsCompleted Panel Trap (Right Perspective)
A view of the completed panel trap.
Date: 2004.05.23
Views: 2048
A view of the completed panel trap. It has been covered with somewhat acoustically transparent fabric. 2004.05.23
View Slideshow
Completed Panel Trap (Left Perspective)
Item ActionsCompleted Panel Trap (Left Perspective)
A view of the completed panel trap.
Date: 2004.05.23
Views: 2949
A view of the completed panel trap. It has been covered with somewhat acoustically transparent fabric. 2004.05.23
View Slideshow
Completed Panel Trap (Side)
Item ActionsCompleted Panel Trap (Side)
A side view of the completed panel trap.
Date: 2004.05.23
Views: 2583
A side view of the completed panel trap. After covering the panel trap with fabric, it was more firmly attached to the wall with self-screwing screws. This will prevent vibration of the frame and close the gap between the frame and wall. 2004.05.23
